Unique Mixproof stora partiklar

For applications with very large particles or highly viscous fluids, this valve offers the same basic advantages as Unique mixproof valves but are specially designed with large openings up to 45 mm in diameter.

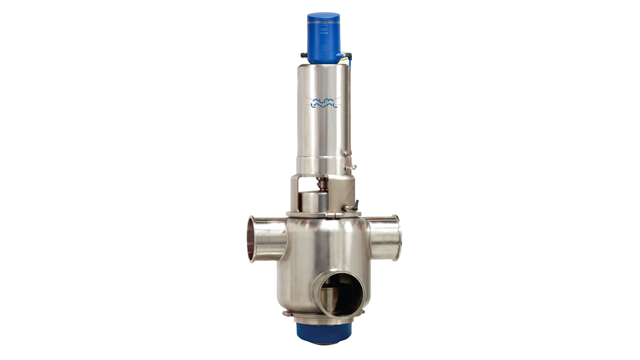

Unique Mixproof Large Particle w ThinkTop V70 640x360

Cost effective mixproof valve

Alfa Laval Unique mixproof valves feature two independent plugs, which means that a single Unique mixproof valve can often replace two or more valves of other types.

Exceptional spillage-free operation

A state-of-the-art double-seat design provides long-lasting, spillage-free operation thus minimizing the risk of product contamination. The use of double lip seals provides added protection to ensure safe and hygienic operation.

Easy valve to maintain and clean

Unique mixproof valves feature a top-loaded design, making maintenance fast and easy. It also features no adjustable components, a maintenance-friendly actuator and built-in leakage detection on all seals. Unique mixproof valves meet most hygienic standards and can be supplied with the optional SpiralClean cleaning system.

Click on the playlist to see all 4 animations!


You get the full benefit of using Unique mixproof valves by combining them with Alfa Laval ThinkTop and ThinkTop Basic valve sensing and control units.

Valve clusters - customized flow solutions

We are specialists in providing pre-built valve clusters customized to meet specific, individual requirements.
Our expertise helps ensure you the most efficient flow management, using as few components as possible and dealing effectively with key issues that include thermal cycling, cleanability, drainability and flow control.
Alfa Laval valve clusters can be supplied pre-assembled and pre-tested as well as fully wired and with all the necessary pneumatic tubing, junction boxes and control panels pre-connected.
This means you can bring even complex installations online as quickly as possible, saving time and avoiding lost revenue associated with on-site troubleshooting and downtime.

For more information, please refer to Documentation and to the Selection Guide (below).

For cost-effective alternatives to the Unique mixproof valve range, Alfa Laval also offers standard SMP mixproof valves.

Product benefits

  • Cost effective
  • Safe and hygienic operation
  • Easy to maintain and clean


Senaste nätversionen av ”Close at hand”

Hitta en Alfa Laval-produkt

Så fungerar det


Unique Mixproof-ventilkonceptet baseras på en serie baskomponenter, bland annat ventilhus, ventilplugg, styrdon samt tillval och tillbehör för rengöring som stöder många olika användningsområden. Med hjälp av dessa komponenter kan du skapa en Unique Mixproof-ventil som matchar dina exakta processkrav.

För att underlätta underhållet innehåller Unique Mixproof-ventilen även hål för läckagedetektering som gör att slitage eller skador på statiska o-ringar kan identifieras i tid. Operatörerna kan när som helst visuellt inspektera ventilen utan att behöva plocka isär den.


Alfa Laval Unique Mixproof-ventilen är en normalt sluten ventil som kan fjärrstyras med tryckluft.

För att separera de två vätskorna har ventilen två oberoende pluggtätningar. Utrymmet mellan de två tätningarna bildar en atmosfärisk läckagekammare. I sällsynta fall av oavsiktligt produktläckage, rinner produkten in i läckagekammaren och släpps ut genom läckageutloppet.

När ventilen är öppen är läckagekammaren stängd. Produkten kan sedan rinna från en ledning till den andra utan spill. Ventilen kan enkelt rengöras och skyddas mot följderna av tryckslag i enlighet med processens specifika krav och ventilens konfiguration. (Det spills ingen produkt när ventilen används).

SpiralClean system

Alfa Laval offers its external connected CIP system "SpiralClean". This system ensures hygienic operation in demanding applications where cleaning of the Unique Mixproof by seat lift and seat push function is not sufficient. The SpiralClean system can be added to clean the upper and lower plugs and to rinse the leakage chamber of the valve. Using less cleaning fluid, utilities and time, SpiralClean cleans more thoroughly and efficiently than conventional externally connected CIP devices.

Another big benefit: SpiralClean enables the Unique mixproof valve to operate under aseptic-like conditions, creating a steam barrier to the atmosphere upon applying steam to the CIP pipes.unique-mixproof-spiral-clean-640x360.png


    • 3-A version available upon request
    • Product wetted seals HNBR, NBR or FPM
    • Male parts or clamp liners in accordance with required standard
    • Control and indication: ThinkTop V70
    • Indication for detection of upper seat lift
