Aalborg OC-TCi is intended for steam production. The high-performance Aalborg OC-TCi is a space saving combination boiler fired with both oil and exhaust gas.
Aalborg OC-TCi is intended for steam production, the high-performance Aalborg OC-TCi (formerly MISSION OC-TCi) is a space saving combination boiler fired with both oil and exhaust gas. Preassembled and installed vertically, it consists of an oil-fired module with helix tubes and an exhaust gas fired module with smoke tubes.
The boiler provides effective self-cleaning, thanks to its built-in TCi (Turbo Clean, intelligent) technology and its relatively high gas velocity compared to other composite boilers. Controlled via an Aalborg Control Touch (formerly MISSION Control Touch) system, it can be fitted with a compact silencer to suit any type of diesel engine.
Features and benefits of the Aalborg OC-TCi product
- Vertical smoke/water tube type
- Standard preassembled boiler unit
- Integrated control panel
- Quick and easy installation
- Designed for operation with a monobloc-type pressure jet or rotary cup burner
Så fungerar det

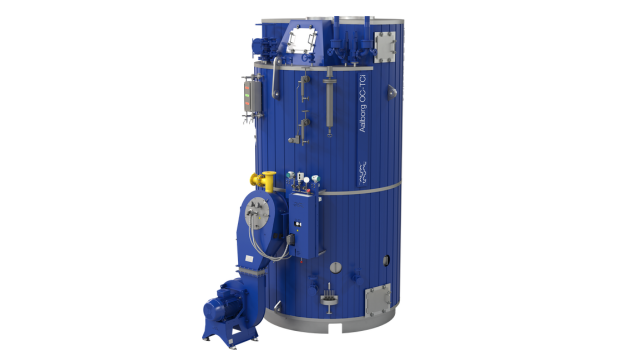

Aalborg OC-TCi is a vertical boiler with an exhaust gas section consisting of smoke tubes. The oil-fired part consists of a furnace, steam space, and the convective section, which consists of helix tubes with a turbo cleaning effect, wherein the flue gas flows. The boiler pressure part is manufactured from mild steel able to withstand high temperatures.
Alfa Laval Aalborg pressure atomizing burner - Aalborg KBM
The Aalborg KBM burner is a pressure-atomizing burner designed for the continuous modulating operation of Aalborg
OS-TCi and OC-TCi boilers. This burner helps maintain uniform combustion, which in turn contributes to improved heat
transfer efficiency and reduced fouling of convection surfaces.
- Thermal output: up to 4.6 MW
- Steam capacity: Up to 6.5 t/h from the oil-fired section
- Up to 5 t/h from the exhaust gas section
- Design pressure: 9 bar(g)
- Container ship
- Bulk Carrier
- LNG/LPG tanker
- Chemical/oil products tanker
